Shimano Caius 150A Low Profile Baitcaster Reel

Great entry-level baitcaster reel

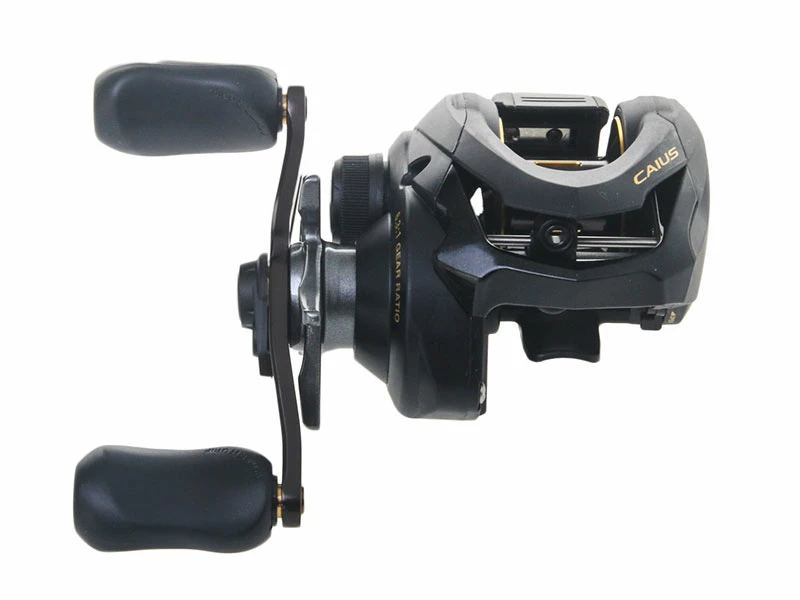

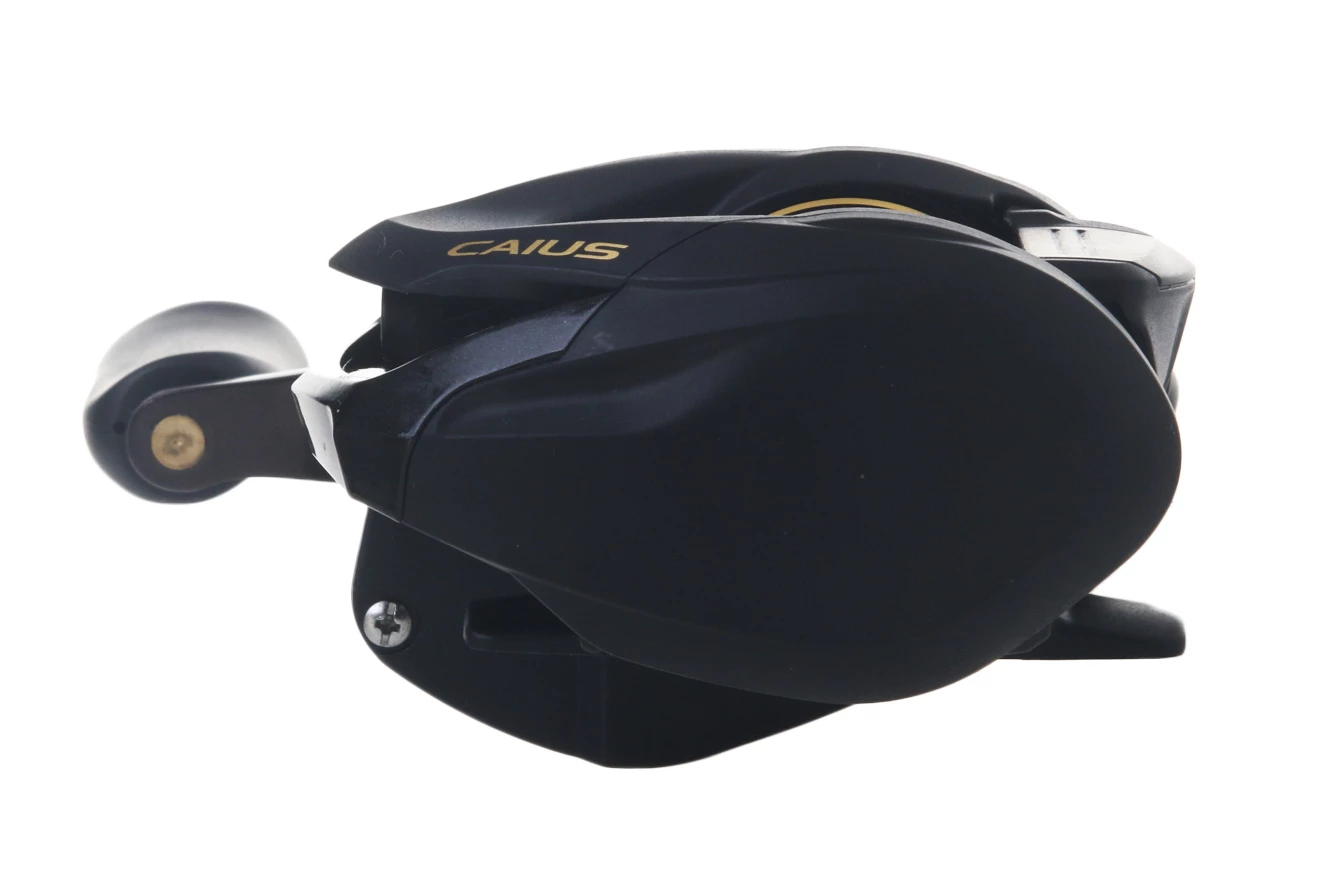

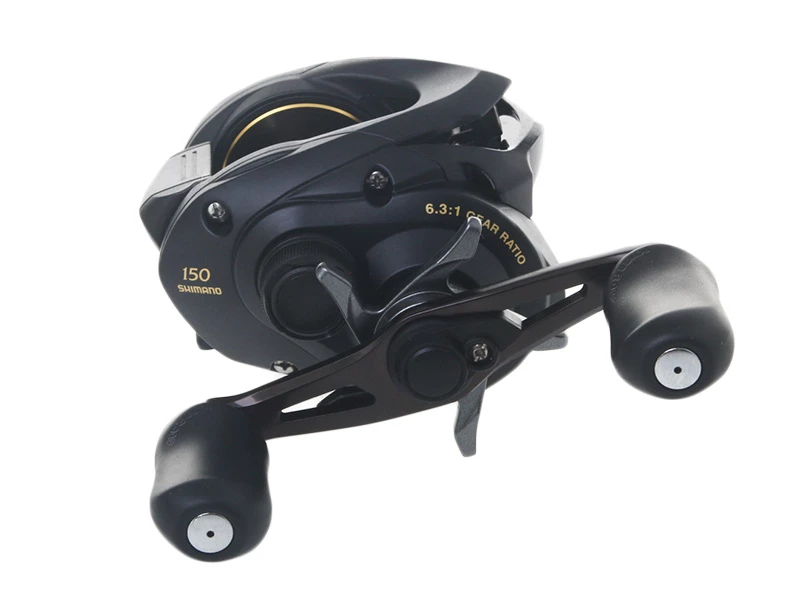

The Shimano Caius 150A Low Profile Baitcaster Reel
is a compact and durable bait casting reel, designed with light
weight lure casting in mind. Reducing the size of the new Caius
from 200 to 150, and upgrading the braking system, means this reel
casts much easier with more accuracy. It’s a great starting point
if you’re looking to give baitcasting-style reels a go.

HEG
HEG consists of not only the gears, but also the frame, setplate,
and handle-side sideplate. First, Shimano increased the size of the
drive gear and the pinion gear to offer increased leverage and
power. By using a one-piece frame that incorporates the setplate
and adding a one-piece stamped sideplate, Shimano have eliminated
flex in the drivetrain that causes normal gears to bind under
pressure. By eliminating the flex and increasing the leverage, you
get high-speed retrieves that deliver an incredible amount of
torque, while maintaining the smooth, silent retrieve Shimano reels
are famous for.

Variable Brake System
VBS uses centrifugal force rather than magnets to aid in
controlling the cast. The individual brake weights, when turned on,
are forced outward at the beginning of the cast when backlashes
most often occur, causing friction that reduces the speed of the
spool. Once the spool speed begins to slow, the pressure lessens,
allowing the spool to continue spinning. The result is a much more
consistent spool speed that is easier to manage and takes advantage
of the reel’s maximum casting distance. Settings range from zero
weights turned on for true freespool and up to 6 weights turned on
for extremely windy conditions and maximum cast control.

Shimano Caius 150A Low Profile Baitcaster Reel
Features:

• Great entry-level baitcaster reel
• Compact and durable bait casting reel
• Casts much easier with more accuracy
• HEG
• Variable Brake System
• Retrieve per crank: 67 cm
• Bearings: 3+1
• Max drag: 5 kg
• Drag type: Star
• Weight: 205g
• Powerpro cap: 20 lbs / 150 yds
• Gear ratio: 6.3:1

Shimano Caius 150A Schematic
