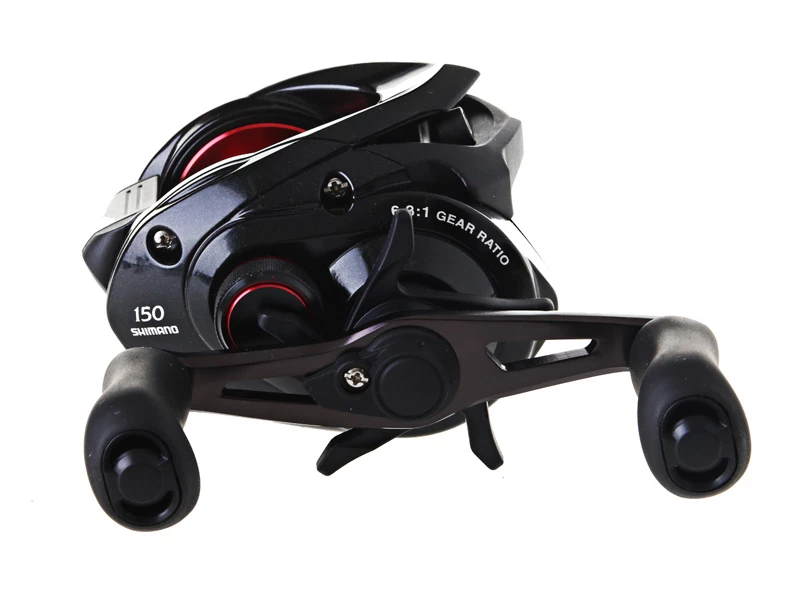

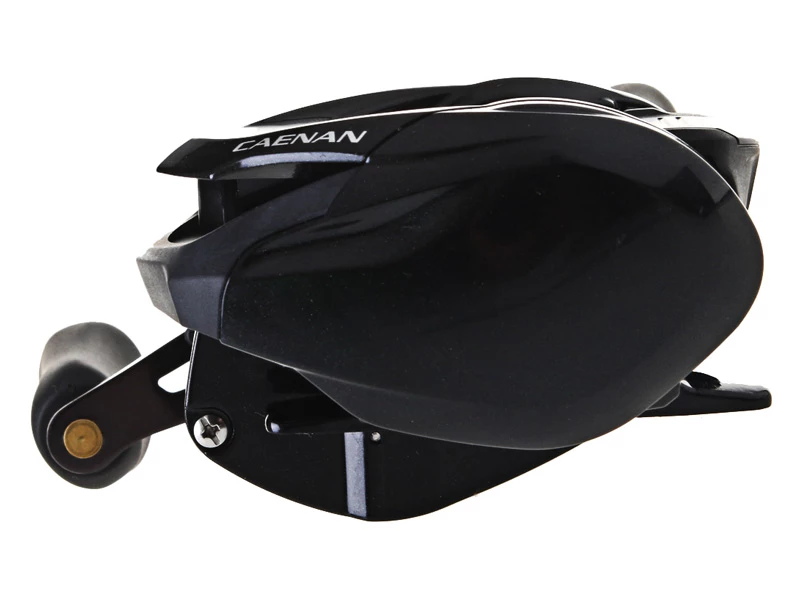

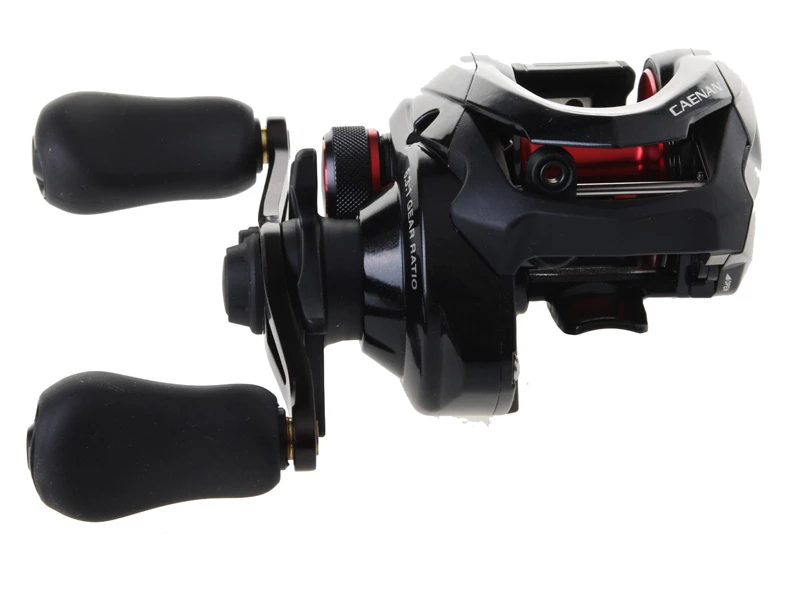

Shimano Caenan 150 A Baitcaster Reel

Consistent speed. Maximum cast control

A workhorse of a reel, the new Shimano Caenan 150 A
Baitcaster Reel is designed to fish many different styles
of lures – from worms and jigs to fast moving spinner baits and
crank baits. It’s been selected by the team at Shimano NZ for its
abilities in both the inshore jig (Lucanus, Bottom Ship, Rock
Hopper and Colt Sniper) and Trout jig and lures casting fisheries.
Get ready to do some serious fishing!

Stable Spool Design (S3D)
This unique Shimano reel feature creates a balanced and uniform
thin-walled aluminium spool which reduces vibration and provides
for silky smooth casts.

SA-RB
These bearings have been through the same process as Shimano’s A-RB
bearings, but features shields on both sides that reduce the
possibility of salt or sand inhibiting rotation.

Variable Brake System
VBS uses centrifugal force rather than magnets to aid in
controlling the cast. The individual brake weights, when turned on,
are forced outward at the beginning of the cast when backlashes
most often occur, causing friction that reduces spool speed. Once
the spool slows down, pressure lessens and allows the spool to
continue spinning. The result is a much more consistent spool speed
that is easier to manage and takes advantage of the reel’s maximum
casting distance. Settings range from zero weights turned on for
true freespool and up to 6 weights turned on for extremely windy
conditions and maximum cast control.

QuickFire II
A system used for easy and fast one-handed casting. The line and
trigger self-centre, and are easy to grasp with your index finger.
By pulling the line and the trigger with one hand, the bail opens
and is ready to be cast.

Super Stopper II Anti-reverse
This reel uses a one-way bearing that eliminates backplay. This
provides the angler with instant hooksetting power

Shimano Caenan 150 A Baitcaster Reel Features:

• Gives precision control back to the angler for accuracy and
  ergonomic all day use
• Stable Spool Design (S3D)
• SA-RB
• Variable Brake System
• QuickFire II
• Super Stopper II Anti-reverse

Shimano Caenan 150 A Baitcaster Reel
Specifications:

• Retrieve per crank: 67 cm (26in)
• Bearings: 4+1
• Maximum drag: 5 kg (11lb)
• Drag type: Star
• Weight: 205g (7.2oz)
• Nylon mono capacity (lb-yds): 10-120/12-110/14-90
• Powerpro capacity: 20-150/30-135/40-105
• Gear ratio: 6.3:1

Shimano Caenan 150 A Baitcaster Reel Schematic Diagram
